Electrical Enclosure Extras

Electrical Enclosures Extension Boxes
Can be used on Sizes 1 and 2

Our size 1 and 2 top or bottom extension box can be fitted direct or via trunking spacer.
Complete with top and bottom plates.
Dimensions: 300mm height x 320mm wide x 180mm depth.

Ideal for SELV or telecoms equipment.

Accessories available for swimming pool and spa control panel enclosures

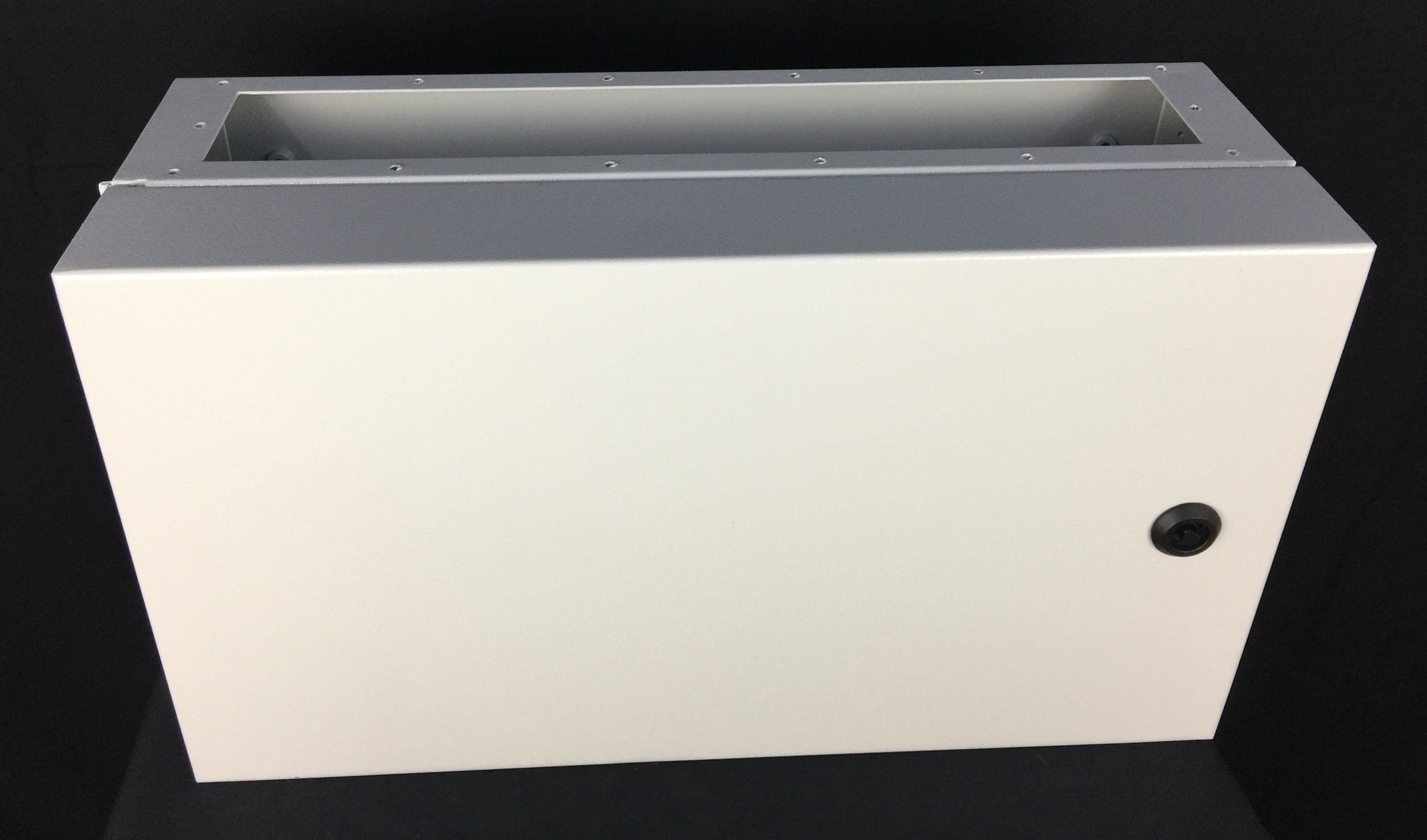

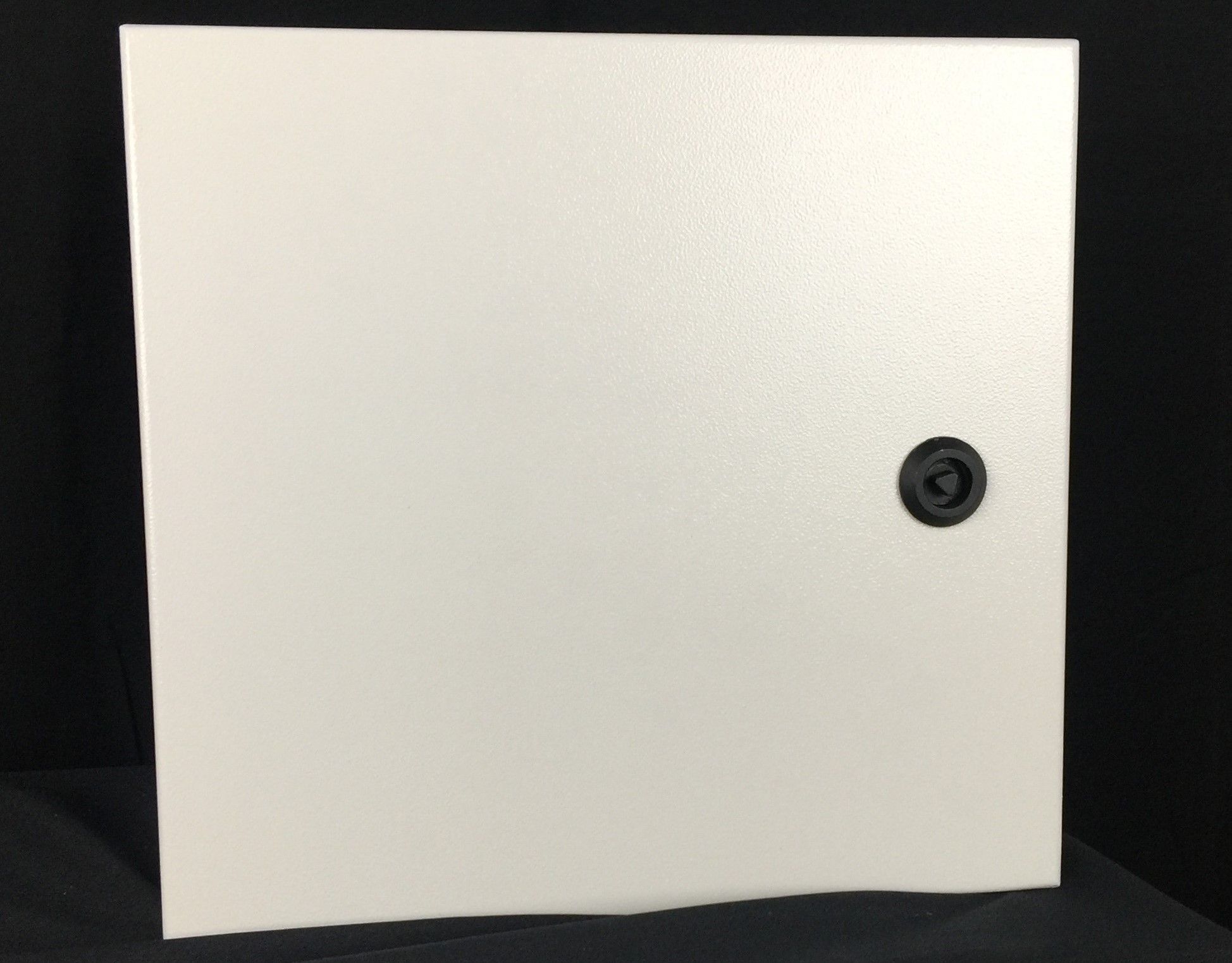

Top or bottom fixing extension box - closed view

Accessories available for swimming pool and spa control panel enclosures

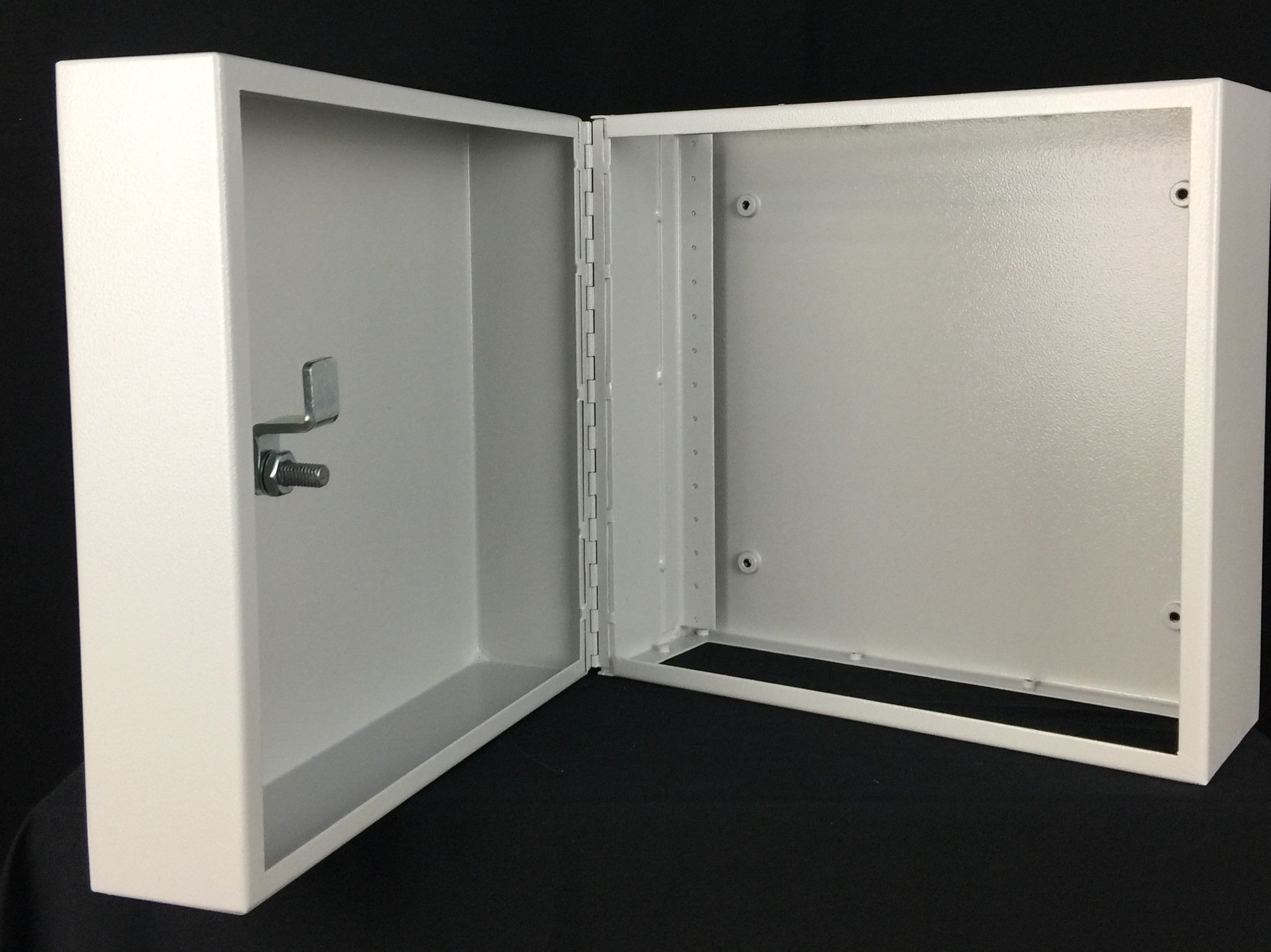

Top or bottom fixing extension box - open view

Electrical Enclosures Extension Boxes
Can be used on Sizes 3 and 4

Our size 3 and 4 top or bottom extension box can be fitted direct or via trunking spacer.
Complete with top and bottom plates.
Dimensions: 300mm height x 520mm wide x 180mm depth.

Ideal for SELV or telecoms equipment.

Accessories available for swimming pool and spa control panel enclosures

Top or bottom fixing extension box - closed view

Accessories available for swimming pool and spa control panel enclosures

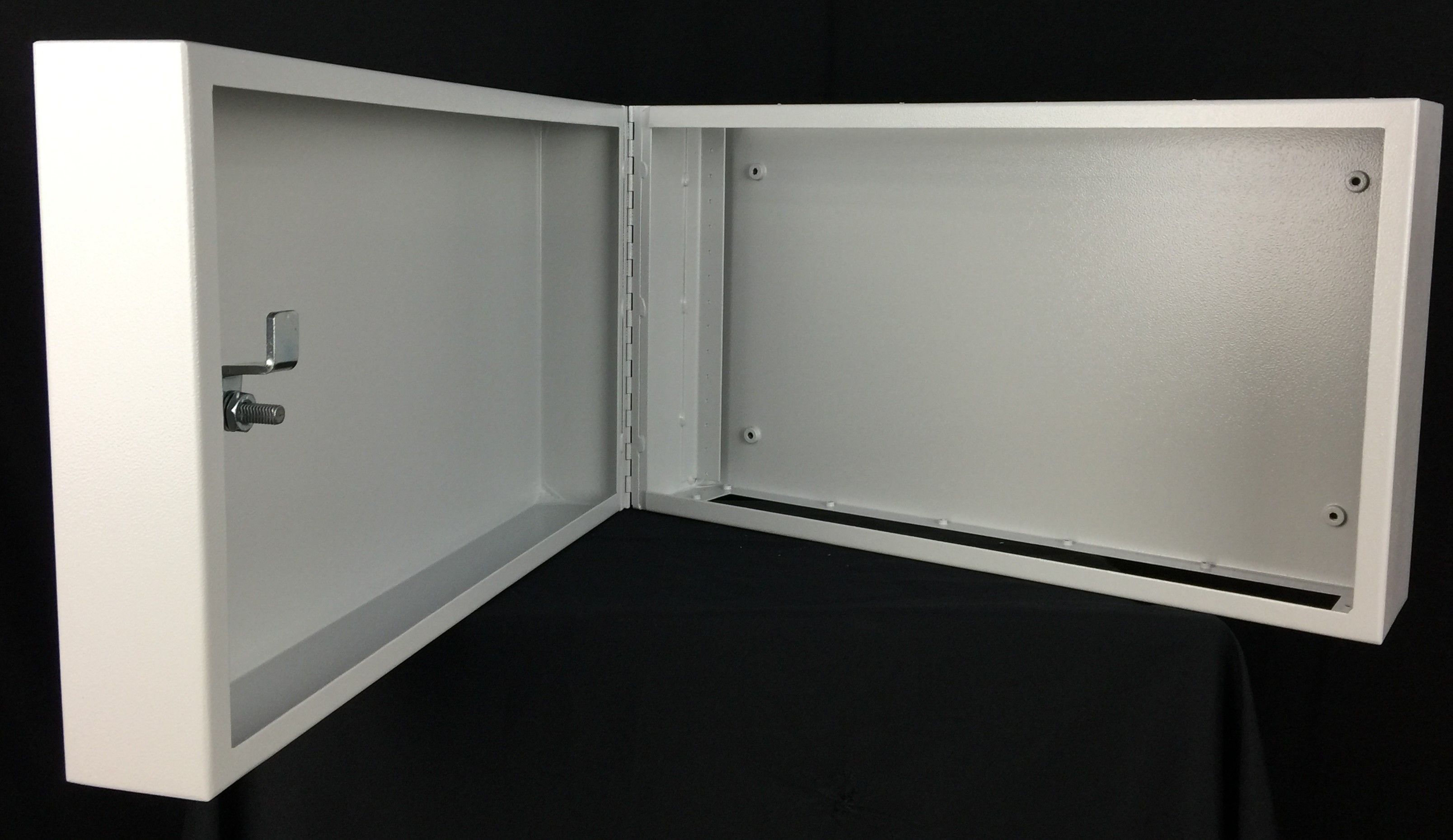

Top or bottom fixing extension box - open view

Mobirise

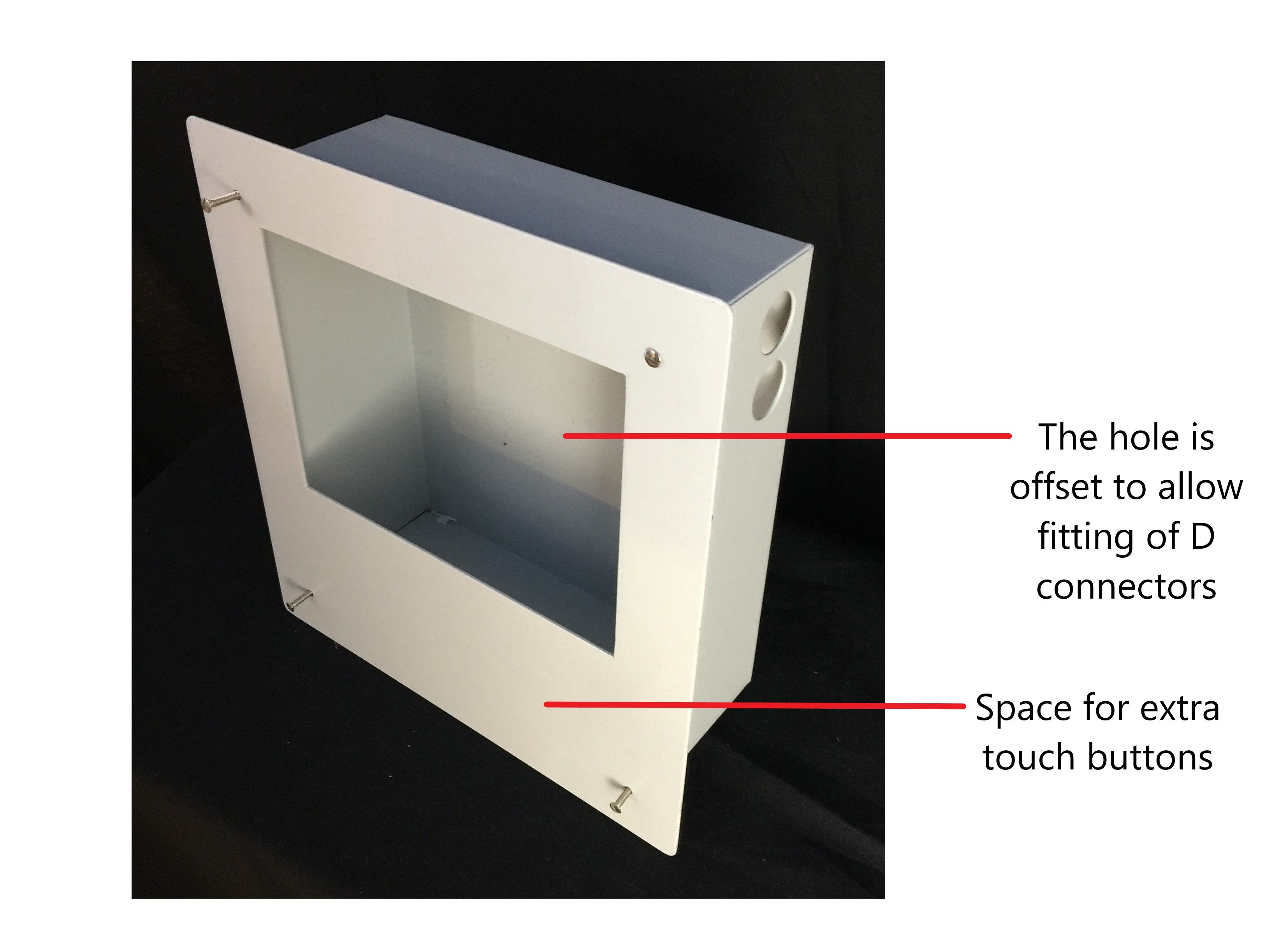

Crouzet screen support enclosure.

Available in brushed or polished stainless steel or painted .
(We recommend polished rather than brushed as brushed looks aged after a short time.)

Mobirise

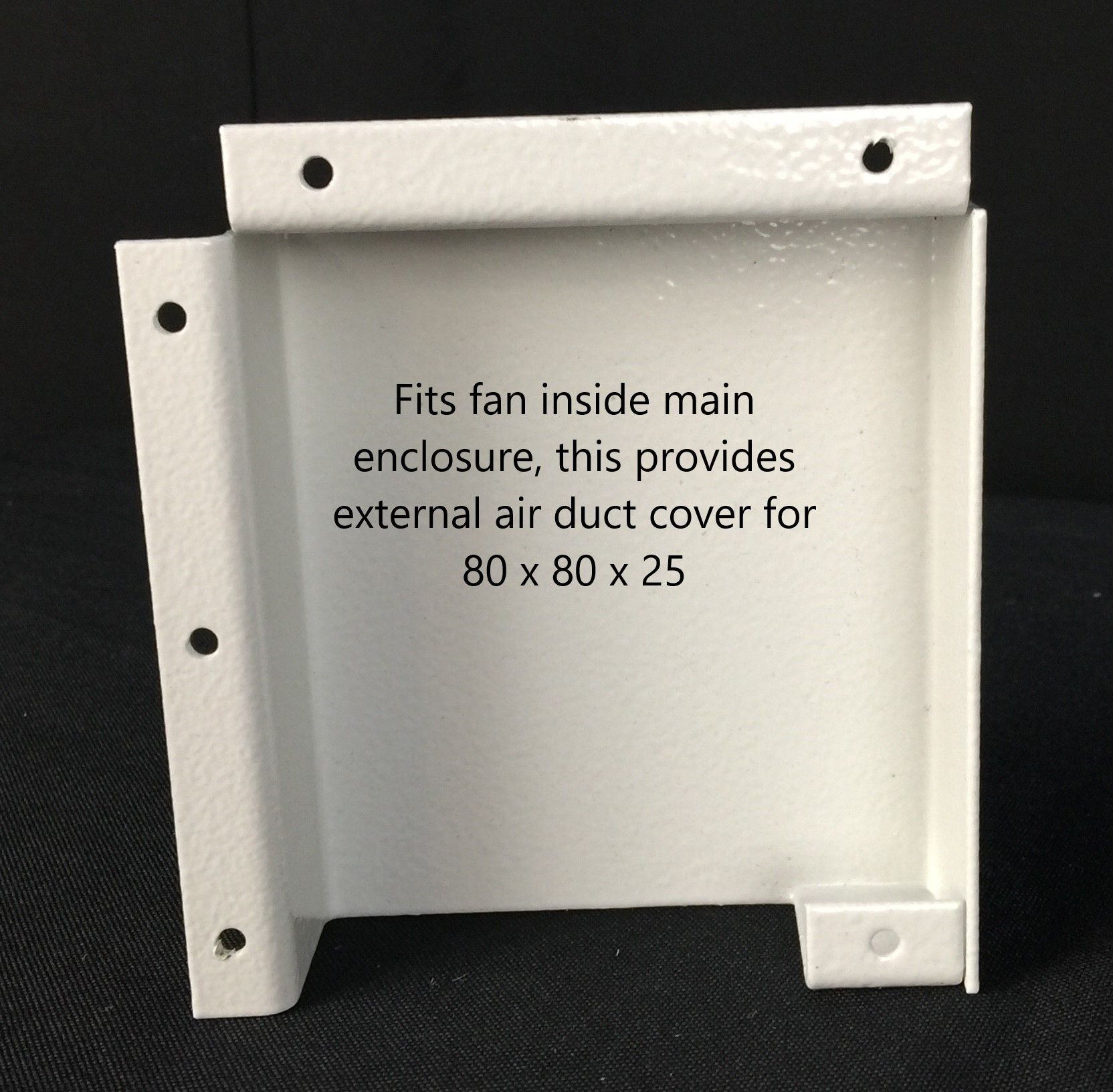

Fan cover

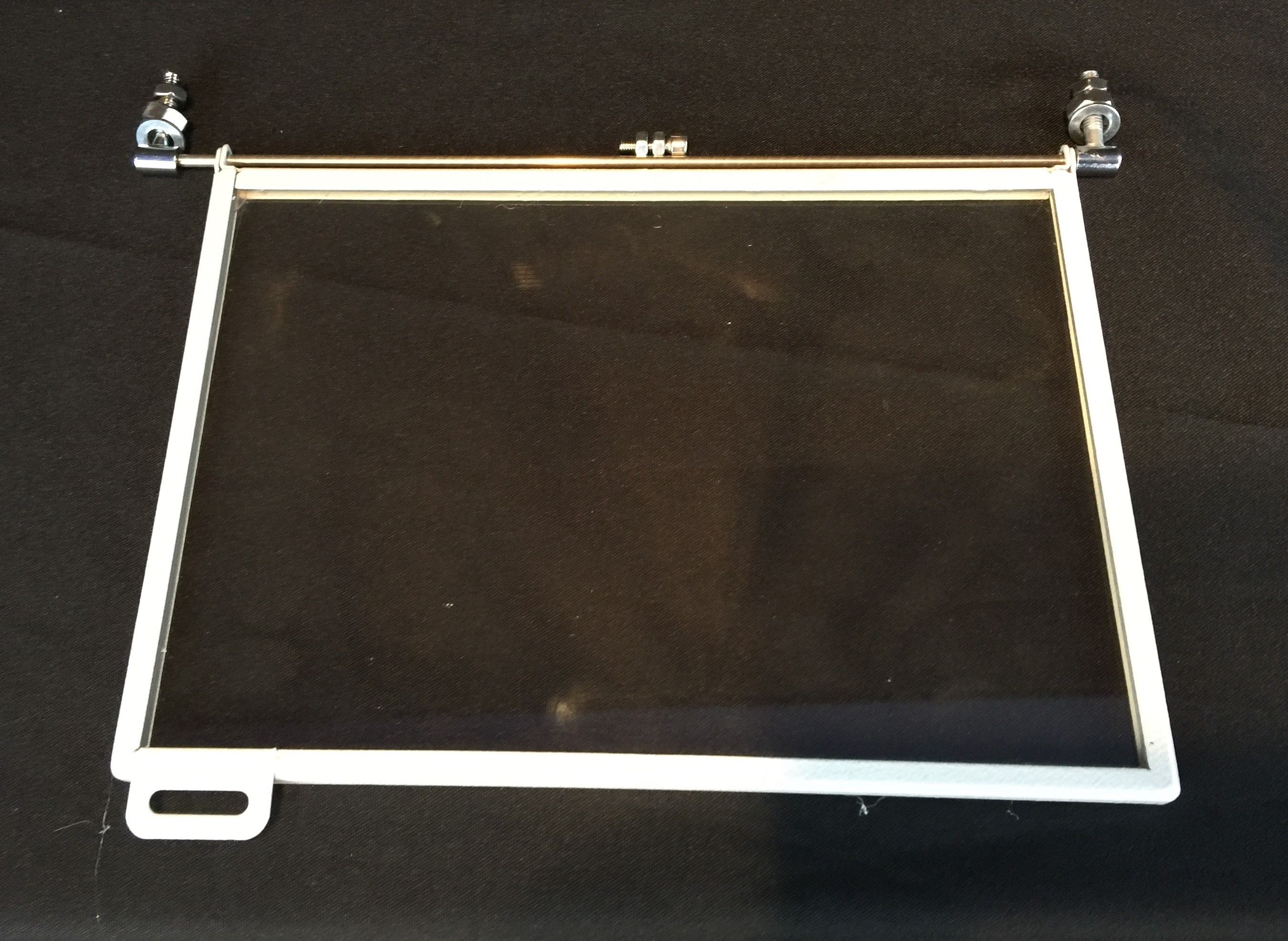

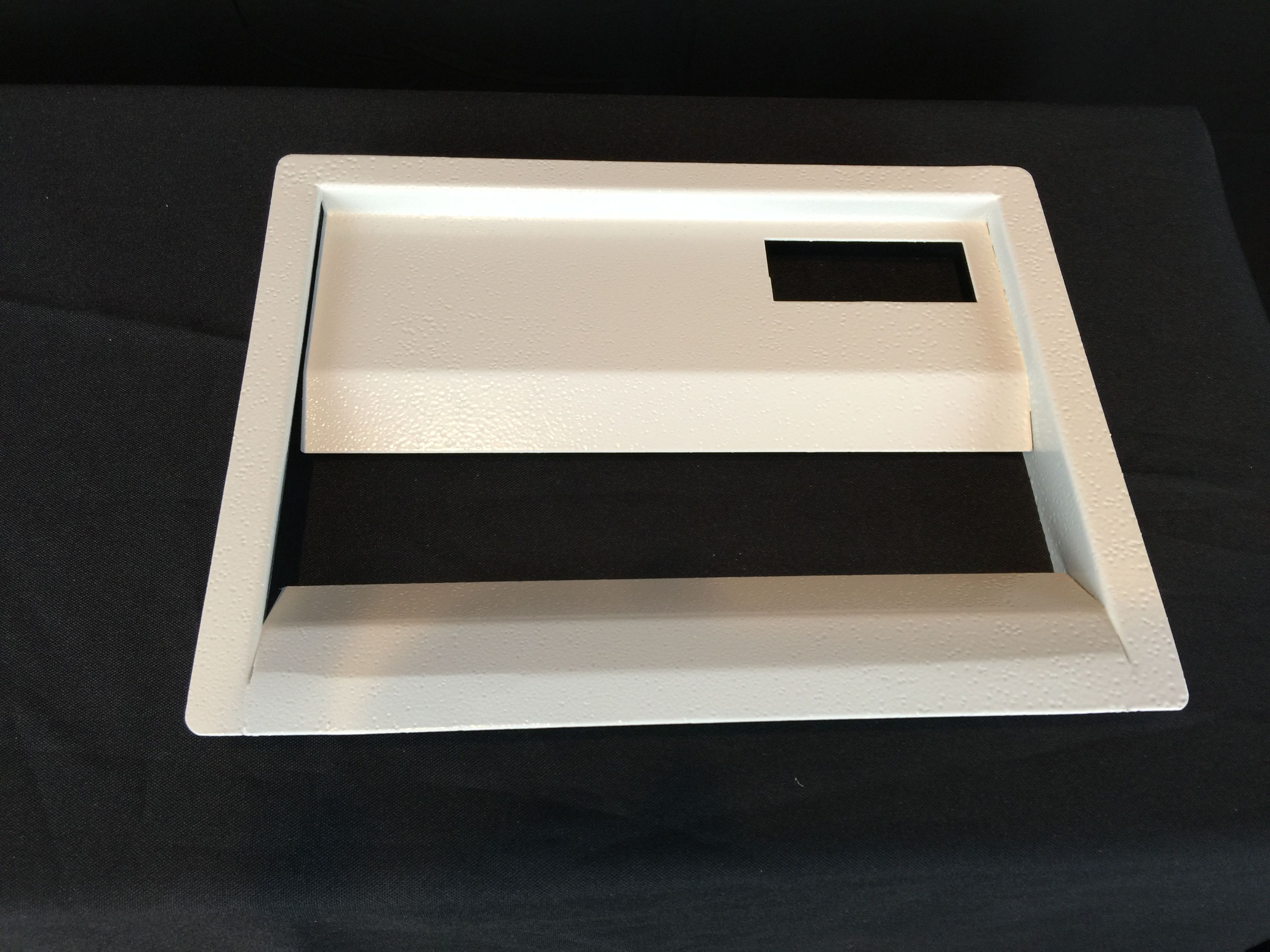

Electrical Enclosure Window Inserts

A range of window insert kits for your electrical control panel enclosures

Mobirise

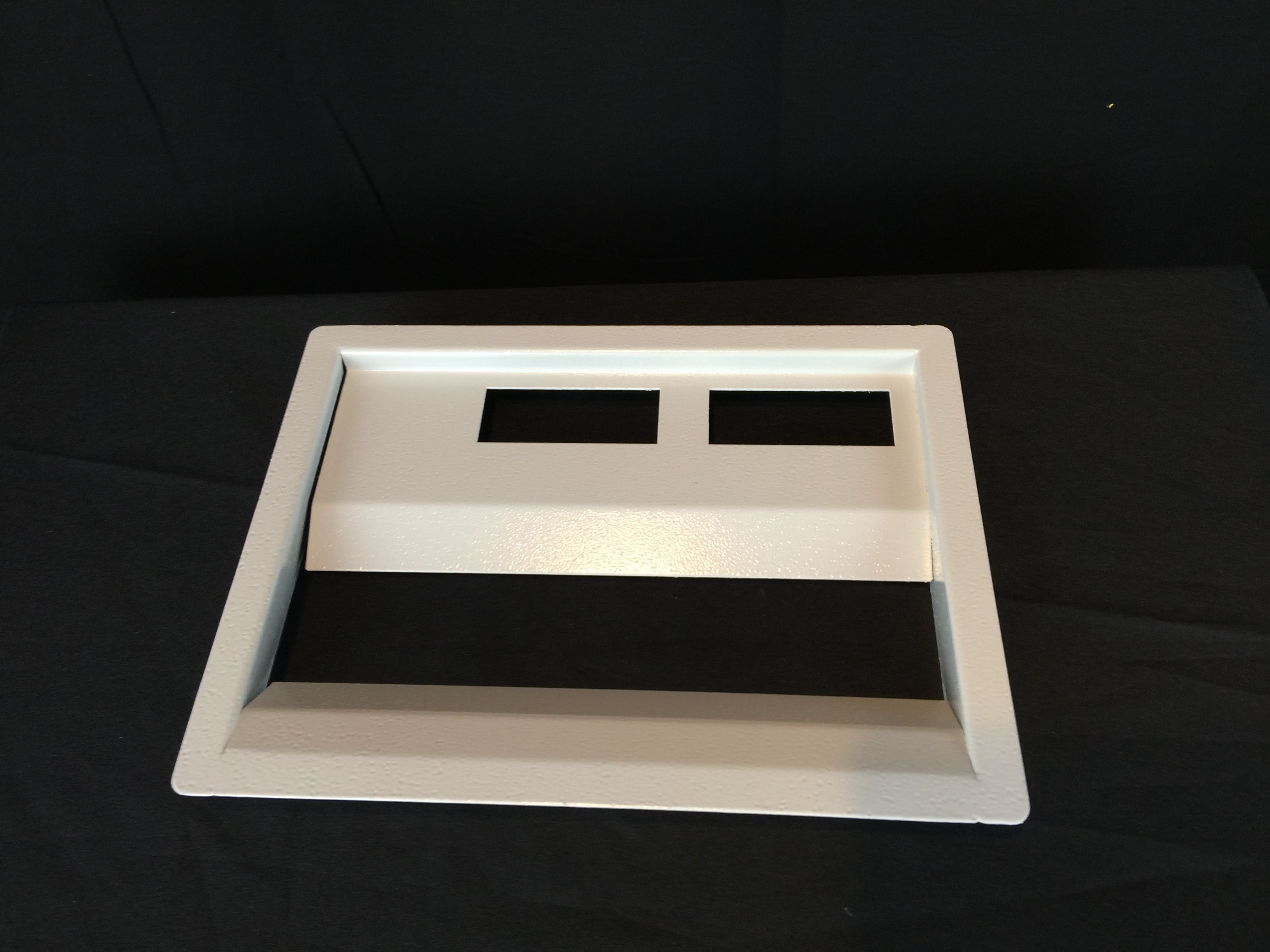

One thermostat slot

Mobirise

Two thermostat slots

Mobirise

Plain window

Mobirise

Fire proof glass viewing panel

Mobirise

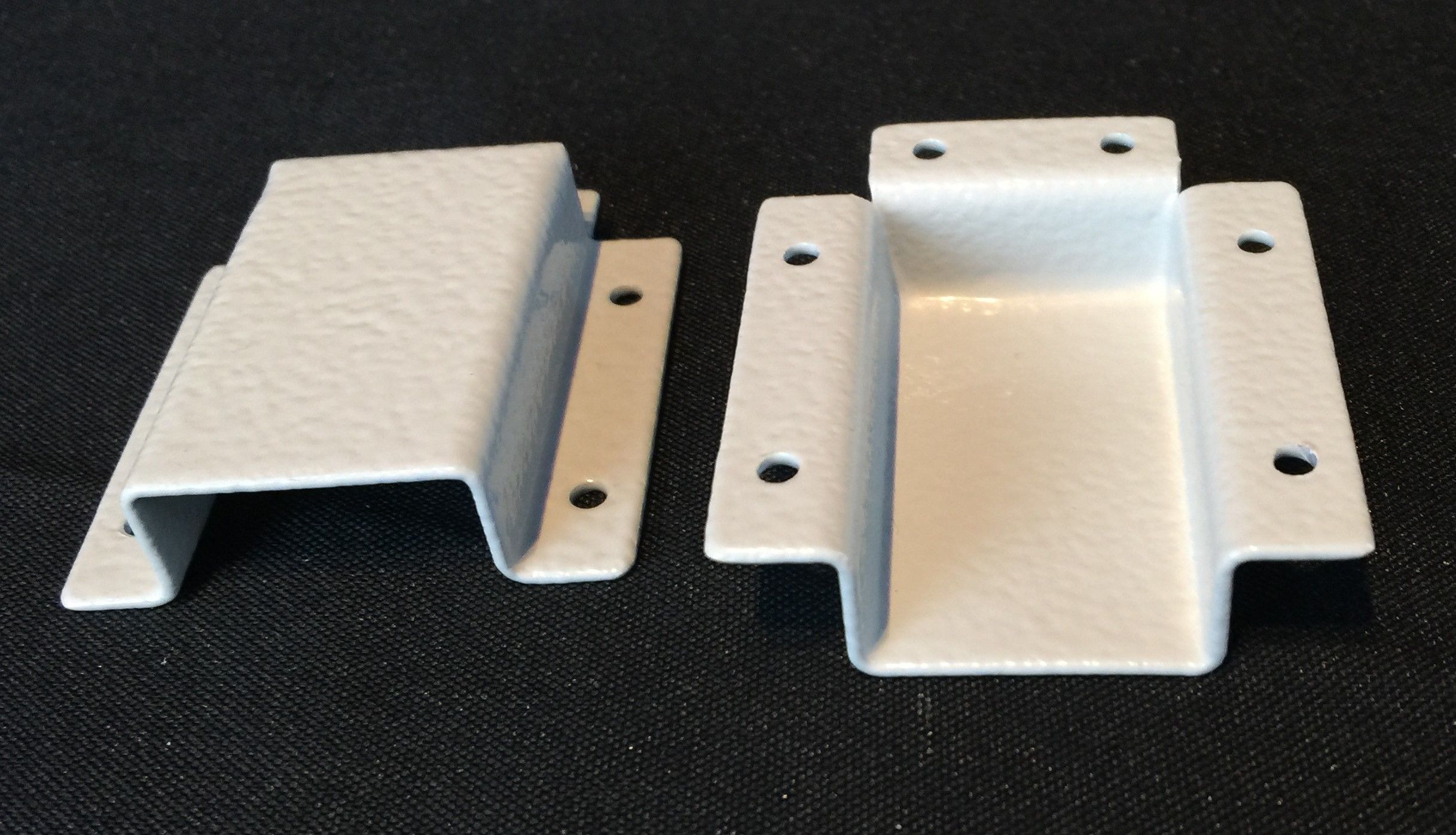

Cooling ears

Mobirise

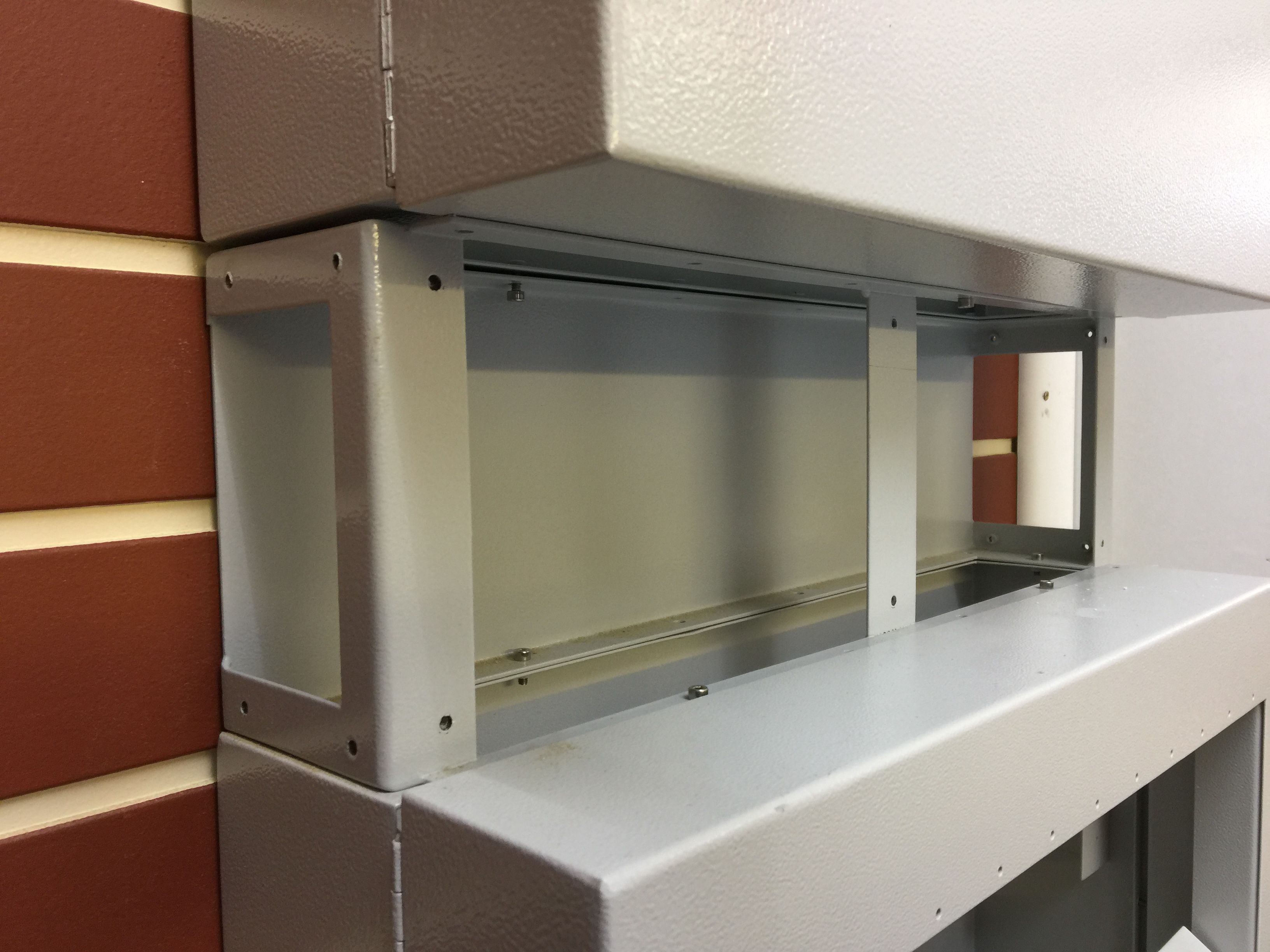

Trunking adaptor complete with covers
(Spaces enclosures by 150mm, heavy gauge material to support top enclosure)

Mobirise

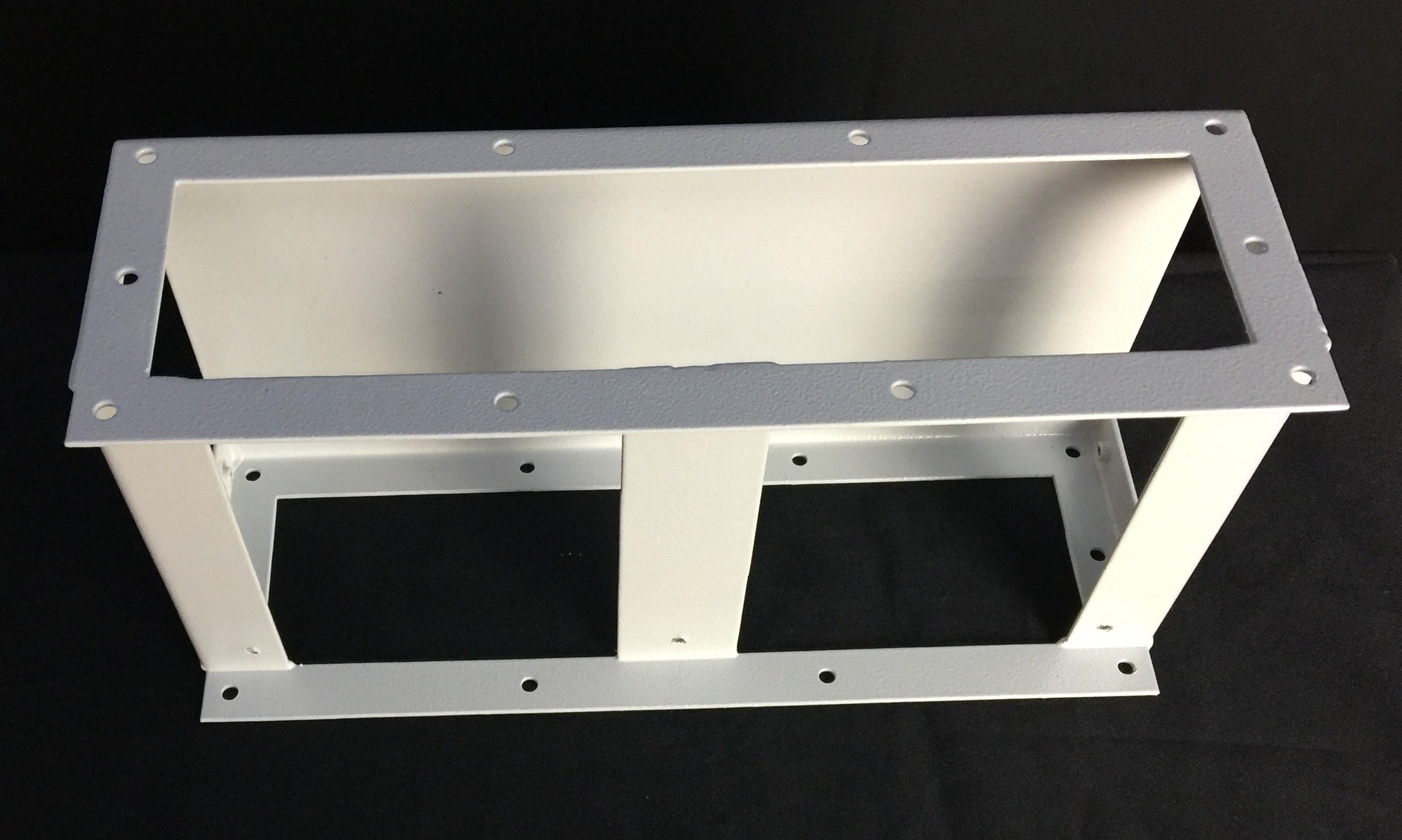

Trunking adaptor - freestanding view, comes complete with covers.
(Seen in situ in previous image.)
Sizes 1, 2, 3 and 4 available.
Comes complete with cover plates.

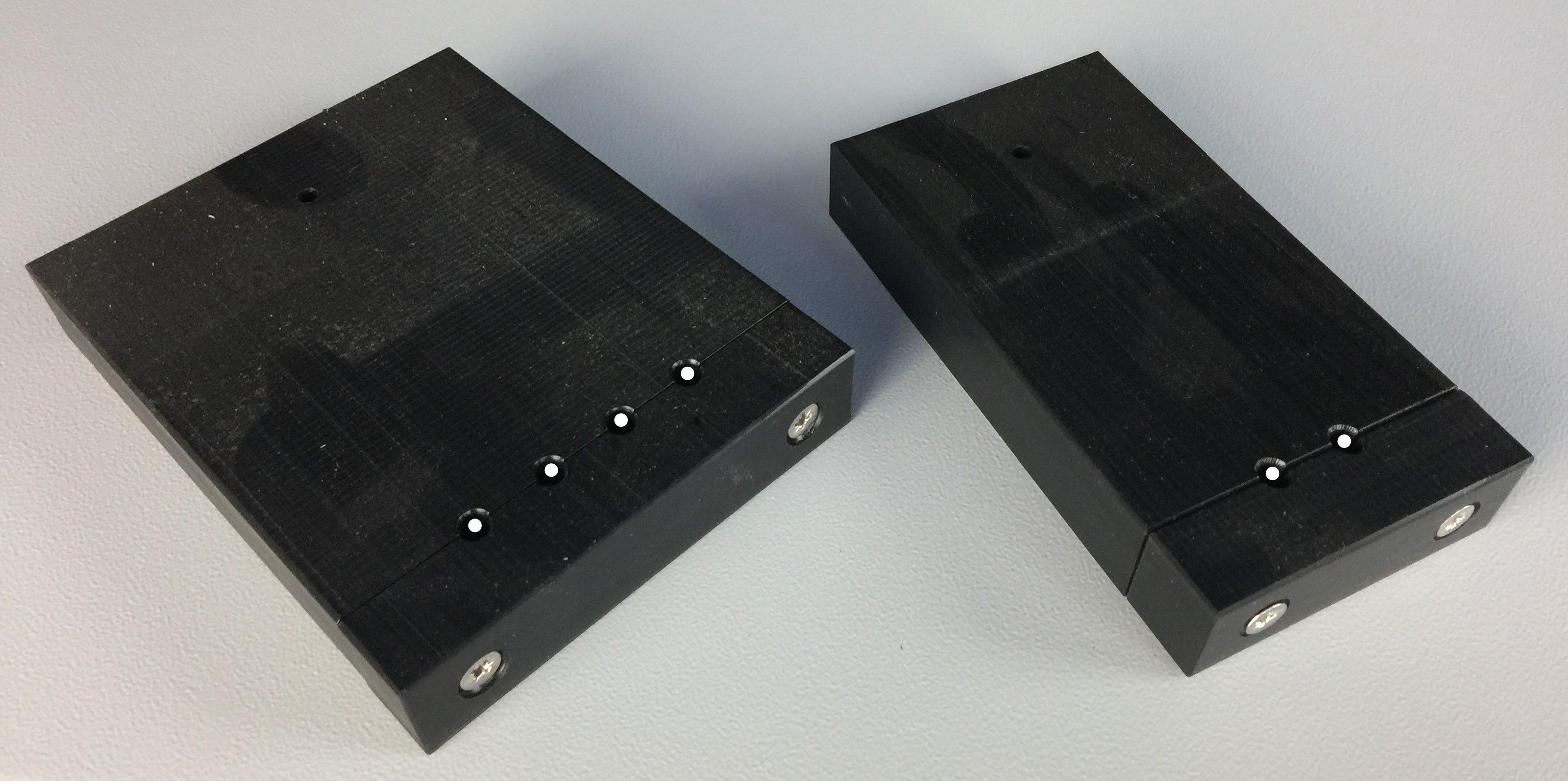

Tail support block

Tail support blocks
Drill holes to suit your size cables.

Mobirise

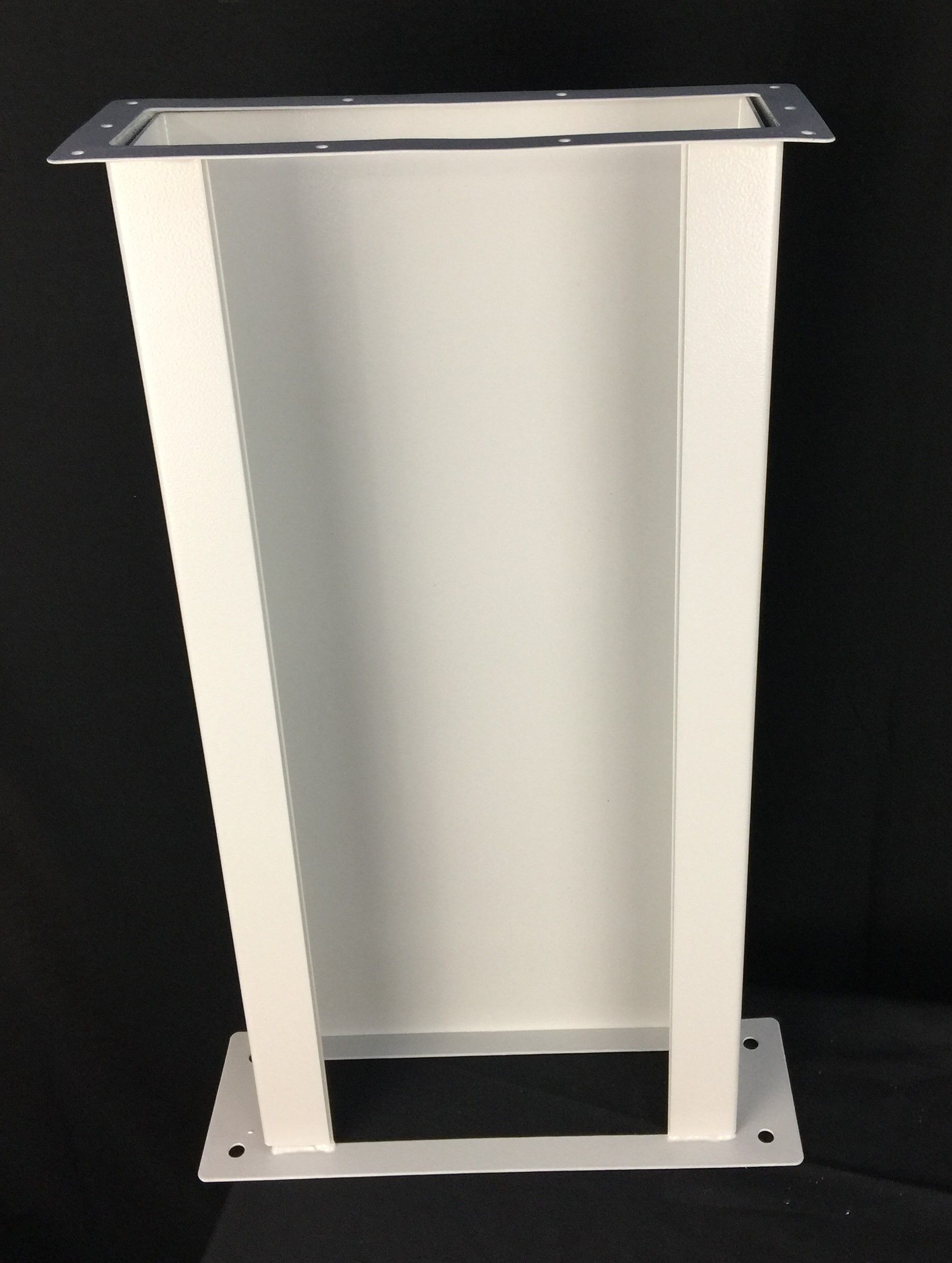

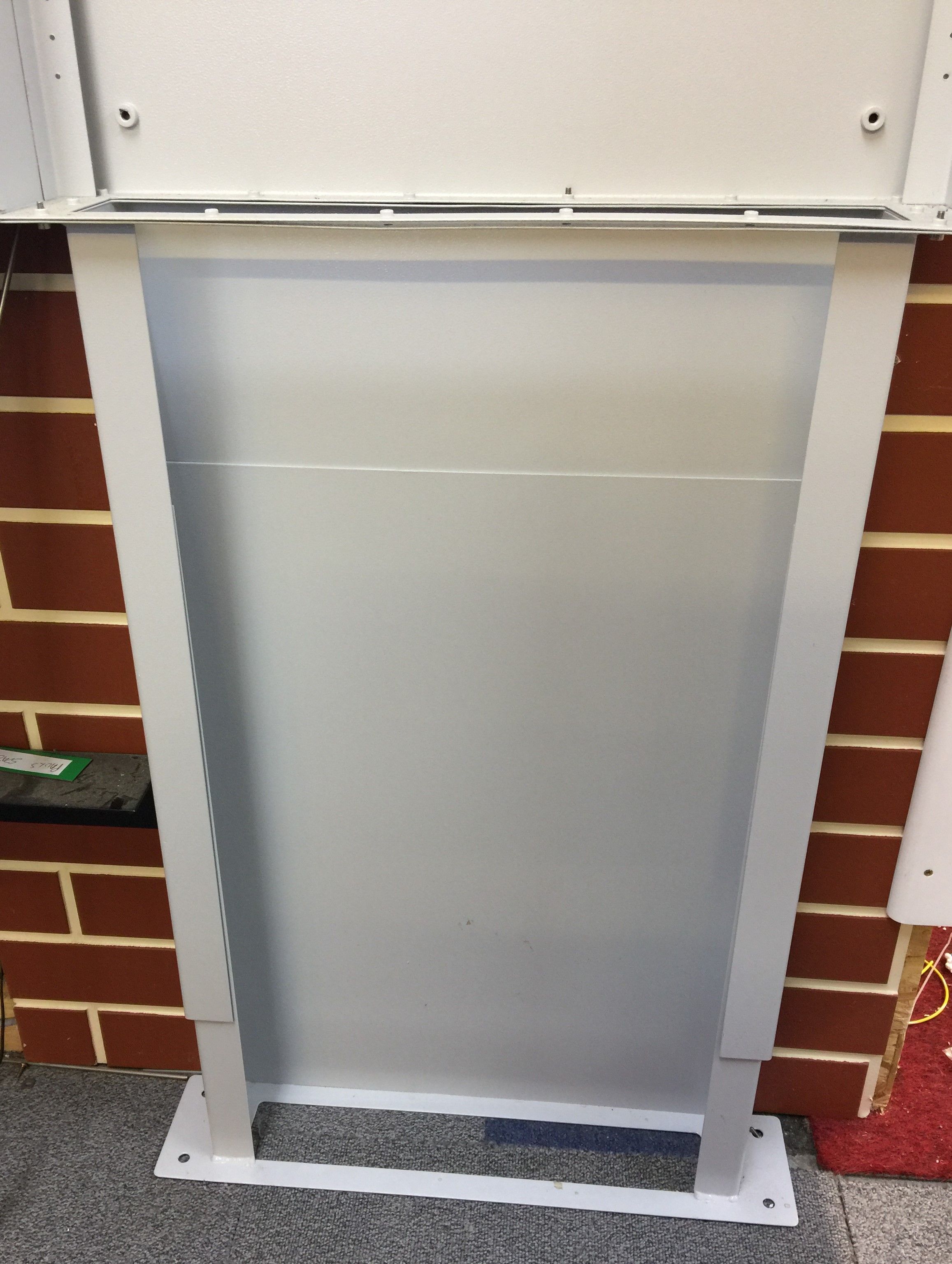

Telescopic base complete with covers
(Adjusts from 730mm to 1100mm height)

Mobirise

Telescopic base with enclosure fixed on top, comes complete with covers

Mobirise

SWA Taurus Gland & Earthing Nut Install Demo - Click to View

Mobirise

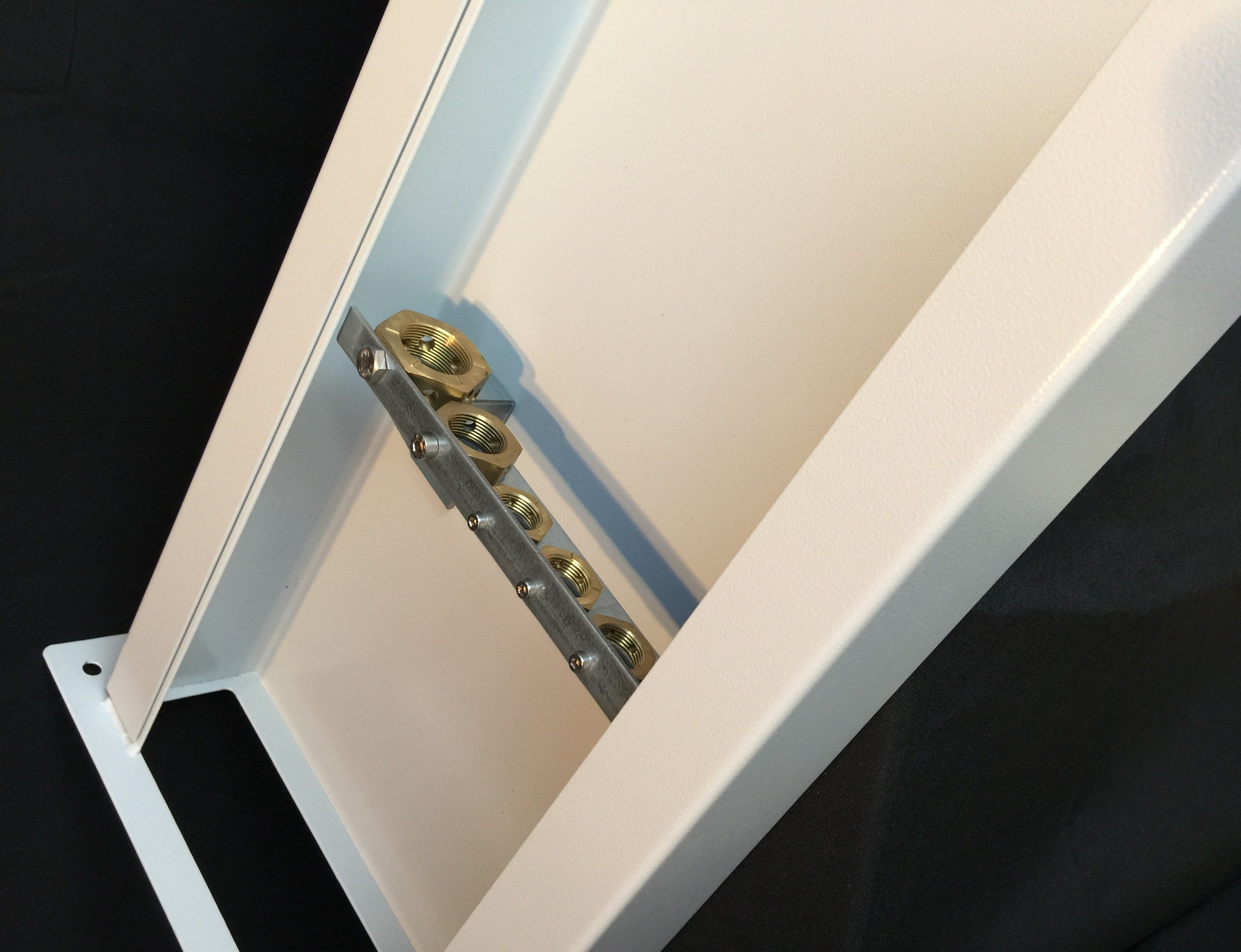

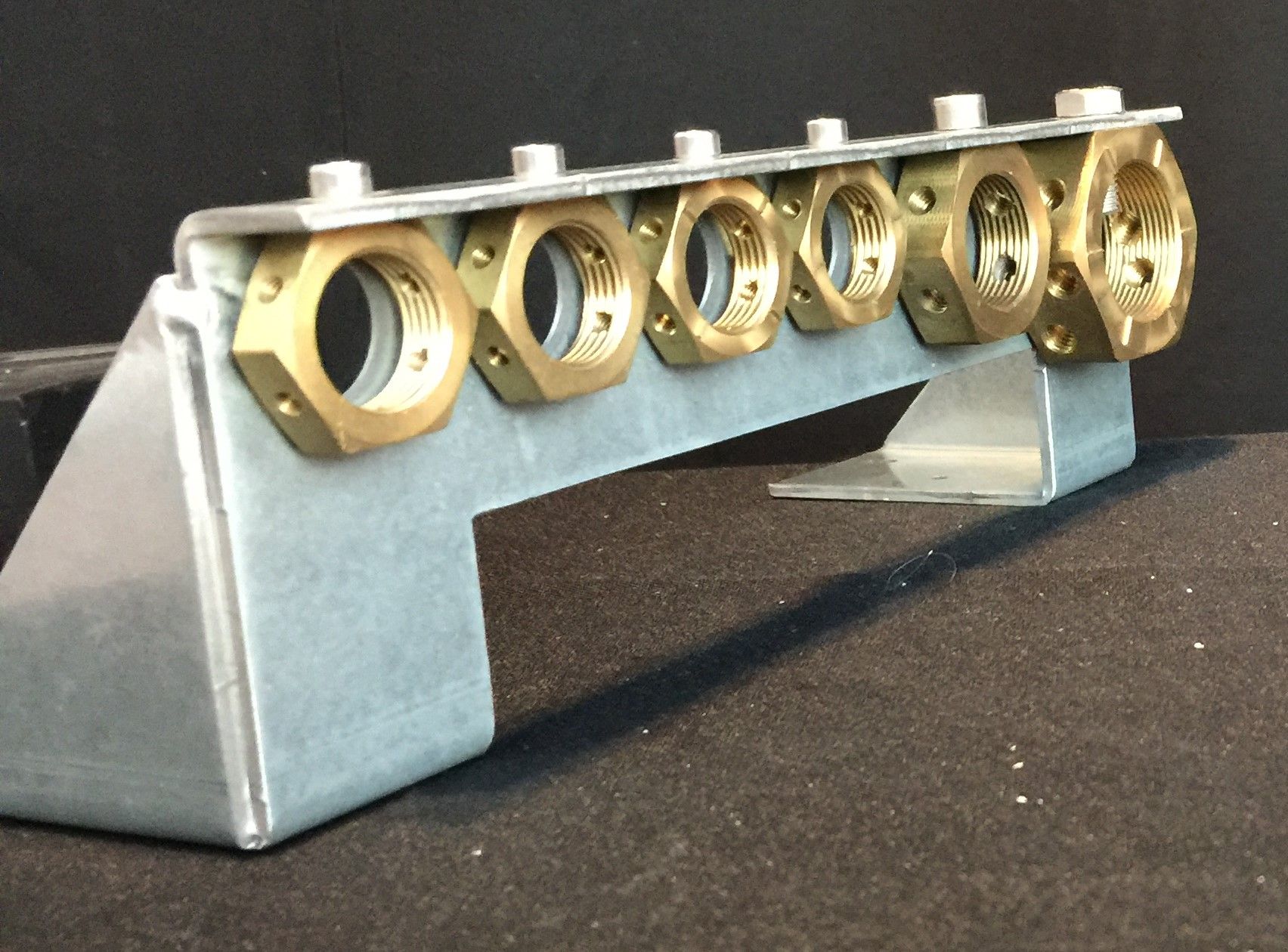

This is to allow termination of SWA cables in telescopic extension with space to pass other cables up behind

Electrical enclosure accessories

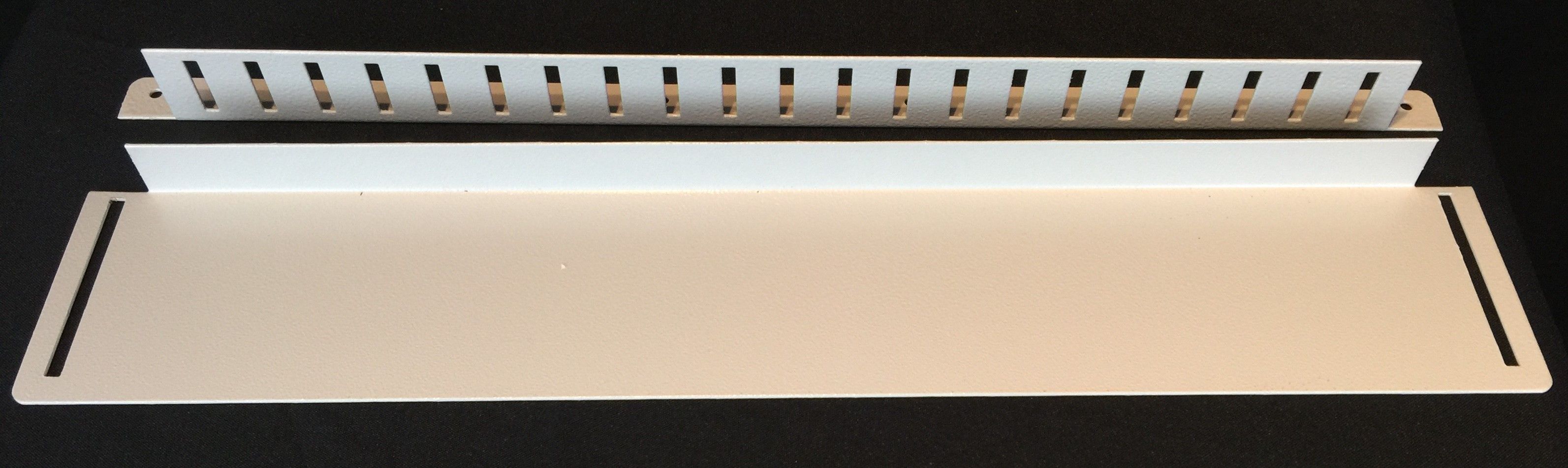

This top/bottom cable entry plate is to allow cable entry where moulded large “D” type connectors go into the enclosure .
The slotted plate is to secure cables with cable ties.

Electrical enclosure accessories

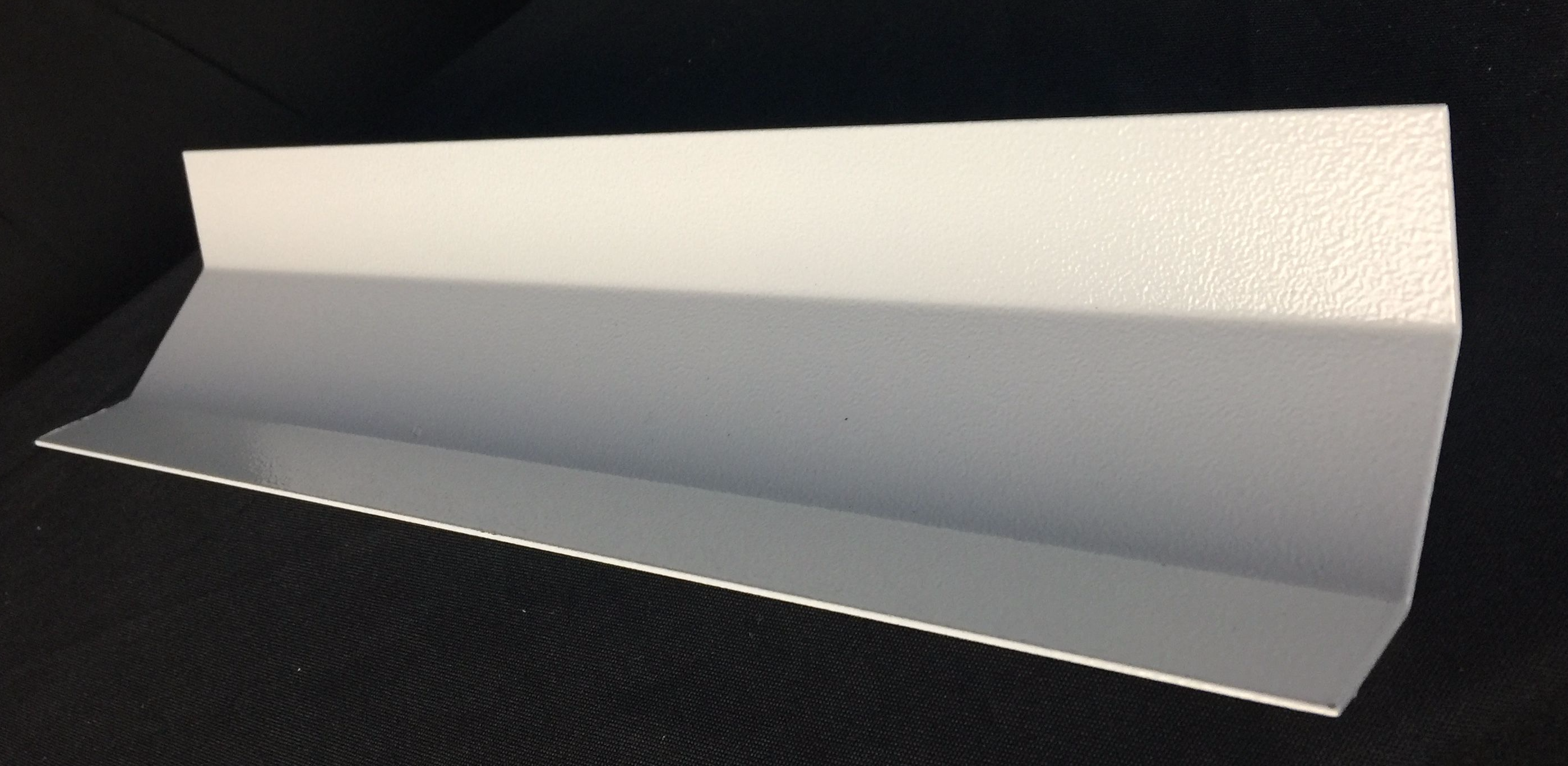

Cover/accessory support plates

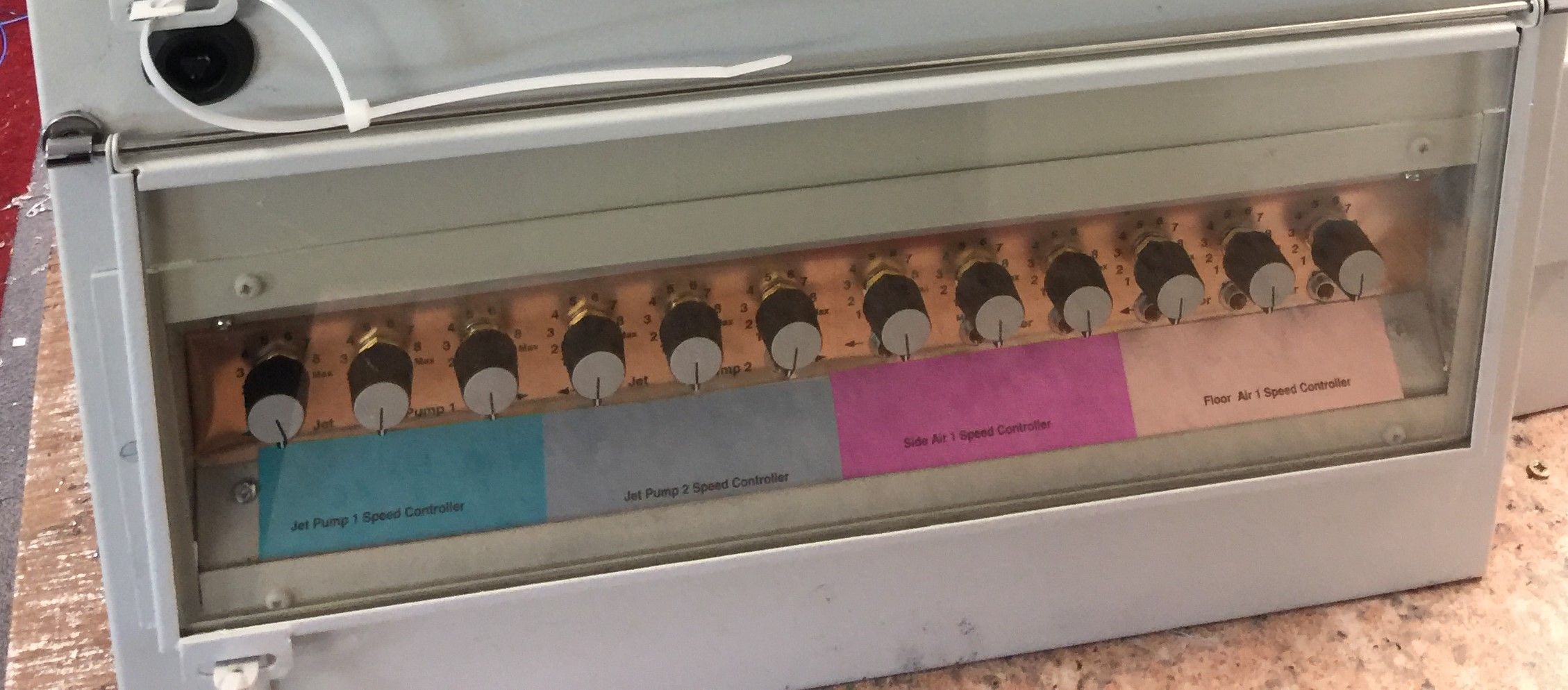

Support plate in use with controls

Cover/accessory support plate in use with controls behind viewing panel
